POLITERM® R

ULTRA-LIGHTWEIGHT THERMALLY INSULATING REGRANULATED AGGREGATE, PRE-COATED WITH E.I.A. ADDITIVE

POLITERM® R is the ultra-lightweight aggregate of the EDILTECO GREEN line for lightweight thermally insulating subfloors that reuse material: it is made of regranulated EPS beads. Same performance as a POLITERM® subfloor, with a lower environmental impact.

The beads, coated with E.I.A. additive, mix perfectly with cement and water, do not float and spread evenly. Densities from 150 to 1800 kg/m³ (9.4 to 112 lb/ft³), with λD from 0.049 W/mK (0.34 BTU·in/(h·ft²·°F)) and strengths up to 25 N/mm² (3,626 psi).

It needs very little mixing water and dries quickly (about 1 day per cm). It is mixed in a cement mixer or mixer and pumped with POLITERM® MACHINE, ISOLCAP MACHINE or screed pumps; it can also be mixed and pumped with a truck mixer. Reaction to fire A2-s1,d0. Also available as POLITERM® R Ready Mix, specifically for concrete batching plants.

NOTE

Regranulated EPS beads from virgin industrial offcuts Ø 2-6 mm (0.079 to 0.236 in), low water absorption, coated with E.I.A. additive.
λD: 0.0489 W/mK (0.34 BTU·in/(h·ft²·°F)) (150 kg/m³ mix) · 0.065 W/mK (0.45 BTU·in/(h·ft²·°F)) (250) · 0.079 W/mK (0.55 BTU·in/(h·ft²·°F)) (300) · 0.104 W/mK (0.72 BTU·in/(h·ft²·°F)) (500) · 0.176 W/mK (1.22 BTU·in/(h·ft²·°F)) (800) · 0.191 W/mK (1.32 BTU·in/(h·ft²·°F)) (1000).
Compressive strength: 0.59 N/mm² (86 psi) (150) · 0.83 N/mm² (120 psi) (250) · 1.61 N/mm² (234 psi) (300) · 2.24 N/mm² (325 psi) (500) · ≥ 5 N/mm² (≥ 725 psi) (800) · ≥ 12 N/mm² (≥ 1,740 psi) (1200) · ≥ 25 N/mm² (≥ 3,626 psi) (1800).
μ 5.9-14.0; specific heat 1.0 kJ/kgK.
ΔLw 14 dB (5 cm (2 in) formula 250 + 5 cm (2 in) screed) · 26 dB (7 cm (2 3/4 in) formula 300 + DBRED FONOTECH 5); L'nT,w 61 dB (formula 250, 11 cm (4 3/8 in)).
Reaction to fire A2-s1,d0; rot-proof.
Cement: Portland 32.5 CEM I or CEM II limestone. Application +5 to +35 °C (41 to 95 °F) (liquid antifreeze admixture allowed below +5 °C (41 °F)).
Minimum thickness on absorbent substrates 5 cm (2 in).

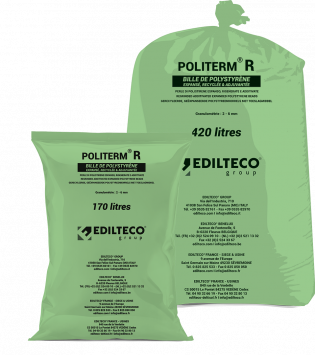

Yield: 2 bags of 420 L (111 US gal) or 5 bags of 170 L (44.9 US gal) per 1 m³ (35 ft³) (up to 350 kg/m³ (21.8 lb/ft³)).

PACKAGING

Subfloors on ground and pilotis floors, between floors, on roofs and on timber floors.
Insulation of non-walkable attics.
Vault infill, even at very high thicknesses.
Fill beneath trafficable asphalt pavements.
Subfloors for industrial flooring.
