ECAP® ADP

PRE-MIXED FIBRE-REINFORCED ADHESIVE AND SKIM COAT, IN POWDER FORM

ECAP® ADP is the fibre-reinforced mineral adhesive and skim coat of the ECAP® system: one product to bond insulation boards to the wall and to skim them with the embedded fibreglass mesh. It is certified to ETAG 004 / ETA within the EDIL-THERM® systems.

It has high adhesion to EPS and is vapour-permeable; water absorption is class W0 and reaction to fire class A1. It is applied from 1 to 10 mm (0.039 to 0.394 in) per coat and is available in grey or white.

NOTE

Compressive strength class CS III; adhesion to EPS > 0.16 N/mm² (> 23 psi) (failure in the board).
Water absorption W0; μ ≤ 8; λ < 0.43 W/mK (< 2.98 BTU·in/(h·ft²·°F)); reaction to fire A1.
Mixing water 5.25-5.75 L (1.4-1.5 US gal) per 25 kg (55 lb) bag; workability > 30 minutes.
Consumption: bonding 4-6 kg/m² (0.82-1.2 lb/ft²) (full bed) or 3-5 kg/m² (0.61-1 lb/ft²) (dot and perimeter); skimming about 1.1 kg/m² per mm of thickness (5.72 lb/ft² per inch of thickness).

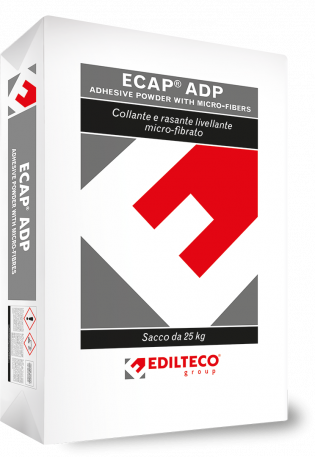

Grey or white; 25 kg (55 lb) bag.
