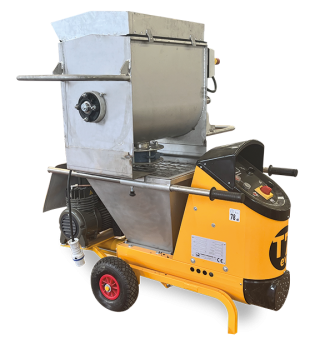

GUM GUM MACHINE

MIXING AND PUMPING SYSTEM FOR THE APPLICATION OF RUBBER-BASED MATERIAL FOR ACOUSTIC INSULATION

GUM GUM MACHINE is the mixing and spraying machine for GUM GUM SPRAY, the rubber-based compound that creates resilient impact sound layers on floors, stairs and walls. Simple, fast, clean and effective, it runs on a normal 220 V single-phase supply.

Light and easy to move on site, it mixes in its 50 L (13.2 US gal) tank and sprays up to 40 m (131 ft) away and 15 m (49 ft) high at 35 bar (508 psi). It can also spray lightweight plasters such as ISOLTECO® 150 and 230 and self-levelling mortars.

NOTE

Electric motors: sprayer 1.5 kW (2 hp) - 220 V; mixing tank 1.1 kW (1.5 hp) - 220 V - 50 Hz (60 Hz version available on request).
Flow rate 0.5-12 L/min (0.13-3.2 US gal/min)*; max grain size 5 mm (0.197 in); max pressure 35 bar (508 psi).
Stainless steel hoppers: sprayer 50 L (13.2 US gal); mixing tank 50 L (13.2 US gal) effective (70 L (18.5 US gal) nominal).
Spray distance 40 m (131 ft)*; spray height 15 m (49 ft)*; loading height 120 cm (47 1/4 in); outlet nozzle Ø 25 mm (1 in).
Dimensions 1200 × 600 × 1220 mm (47 1/4 × 23 5/8 × 48 in); weight 240 kg (529 lb); compressor 210 L/min (7.4 CFM) (optional).
* Values depend on mix, pump wear, hose diameter and length; maximum height and distance are not reached simultaneously.

PACKAGING

Spraying of GUM GUM SPRAY impact sound layers on floors, stairs and walls.
Spraying of lightweight plasters (ISOLTECO® 150, ISOLTECO® 230) and self-levelling mortars.
