DBRED ZERODB GIPS

LAMINATED ACOUSTIC PANEL FOR WALL ACOUSTIC INSULATION

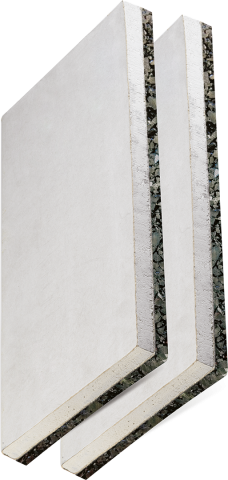

DBRED ZERODB GIPS is a laminated acoustic panel: an SBR rubber layer bonded to a 15 mm (0.591 in) type A gypsum board. Rubber adds mass and damping, gypsum board gives a ready-to-finish surface – in one board and one installation step.

It is the quick way to soundproof an existing wall without demolition: a free-standing lining with ZERODB GIPS 150-10 on a 12 cm (4 3/4 in) hollow-brick wall improves insulation by 18 dB (Rw 63 dB) in 85 mm (3 3/8 in). In new drywall partitions with a double frame it reaches Rw 75 dB; as a suspended ceiling it improves impact sound insulation by 18 dB.

NOTE

+18 dB on existing walls
Rw up to 75 dB
Rubber and gypsum board in one board

ZERODB GIPS 150-5: 5 mm (0.197 in) rubber + 15 mm (0.591 in) gypsum board = 20 mm (13/16 in), 15.6 kg/m² (3.2 lb/ft²); 28 panels per pallet.
ZERODB GIPS 150-10: 10 mm (13/32 in) rubber + 15 mm (0.591 in) gypsum board = 25 mm (1 in), 19.3 kg/m² (4 lb/ft²); 23 panels per pallet.
Panel 120 × 200 cm (47 1/4 × 79 in) (2.4 m² (26 ft²)); reaction to fire B-s1,d0.
Lining on 12 cm (4 3/4 in) hollow brick: free-standing 150-10 Rw 63 dB, ΔRw 18 dB (85 mm (3 3/8 in)); free-standing 150-5 Rw 61 dB, ΔRw 15 dB (50 mm (2 in)); semi-bonded 150-10 Rw 55 dB, ΔRw 9 dB (40 mm (1 5/8 in)); semi-bonded 150-5 Rw 52 dB, ΔRw 6 dB; glued 150-10 Rw 53 dB, ΔRw 7 dB (25 mm (1 in)).
Drywall partitions: single frame Rw 55 dB; with 1 plain board + 1 ZERODB Rw 58 dB; double frame Rw 75 dB.
Suspended ceiling: impact sound improvement ΔL 18 dB.
